Product Abstract:

10mm aperture fiber laser scan head/galvo head for laser marking machine


Product Description

Quick Details

  • Place of Origin: China (Mainland)
  • Brand Name: BCXLASER
  • Model Number: BCX-10NM
  • Application: Laser Marking
  • Laser type: YAG 1064nm
  • Wavelength: 1064nm/10.6um
  • Product name: laser scan head
  • Output power: 75-100W
  • Material: Brass
  • Power:50w/60w/70w/80w/90w/100w/130w/150w
  • Warranty: 1 Year
  • Certificate: FDA
  • Name: Co2 Laser Controller

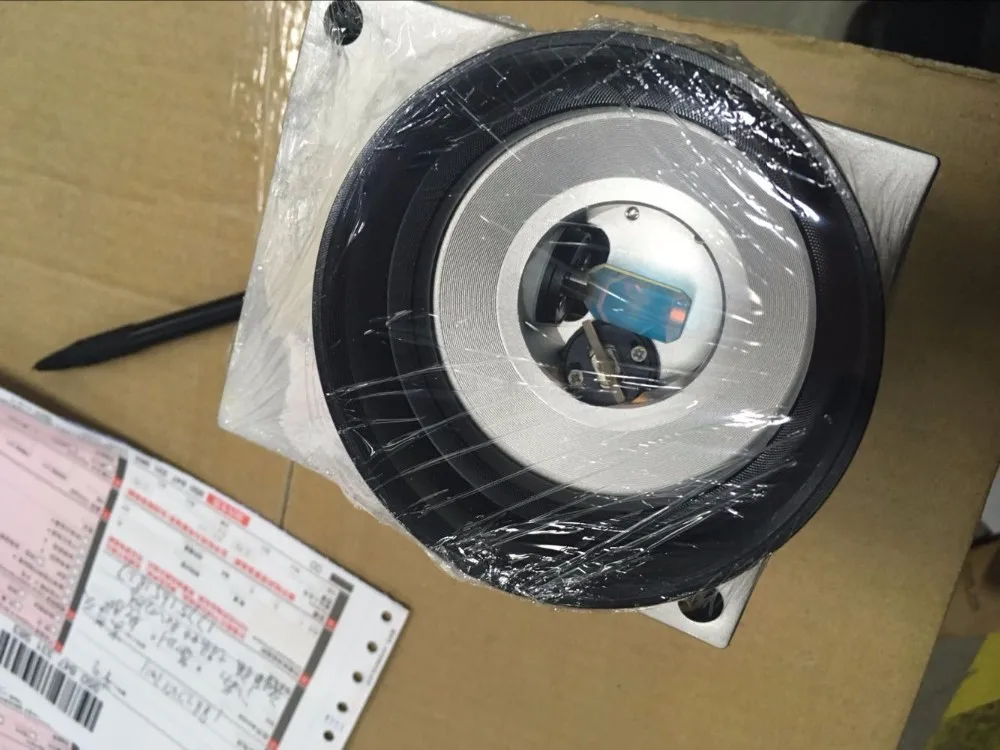

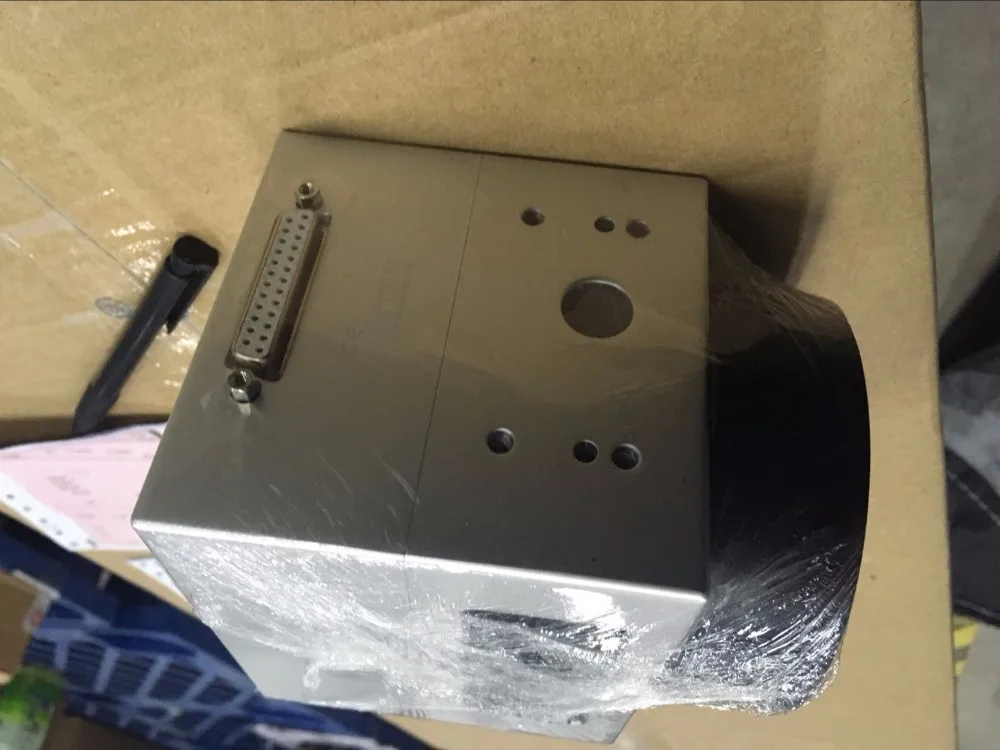

BCX-D10 Galvo head/ scan head



The BCX-D10 Galvo head/ scan head is our standard galvanometers which are designed with analog and digital interfaces,

the products of this series are various.They have the characteristics of zero drift, higher speed,lower temperature and

stronger anti-interference,etc





Advantage of product



1. The BCX-D10 galvo head /scan head are designed with analog and digital interfaces

2. The BCX-D10 galvo head have higher speed,lower temperature and stronger anti-interference

3. High accuracy and zero drift

Specification for motor



Working Temperature
25°C ± 20°C
Linearity
99.9%
Setting Time
≤ 0.3ms
Scale Drift
< 20PPM/°C
Zero Drift
< 10μRad. /°C
Long Term Drift Over 8 hours
< 0.5mRad
RMS Current
3A(Max)
Peak Current
15A(Max)
Maximum Scan Angle
± 20°
Storage Temperature
-10 to +60°C
Resolution
8μrad
Repeatability
12μrad
Input Aperture
10mm
Frequency
≤1000Hz


Specification for driver



Input Voltage
± 15/24VDC@4A MAX.RMS
Interface Signals
Digital:XY2-100
Analog Signal Input Resistance
200K ± 1%Ω
Position Signal Input Resistance
1K ± 1%Ω
Position Signal Input Scale Factor
0.5V/°
Position Signal Output Scale Factor
0.5V/°
Working temperature
0°C - 40°C

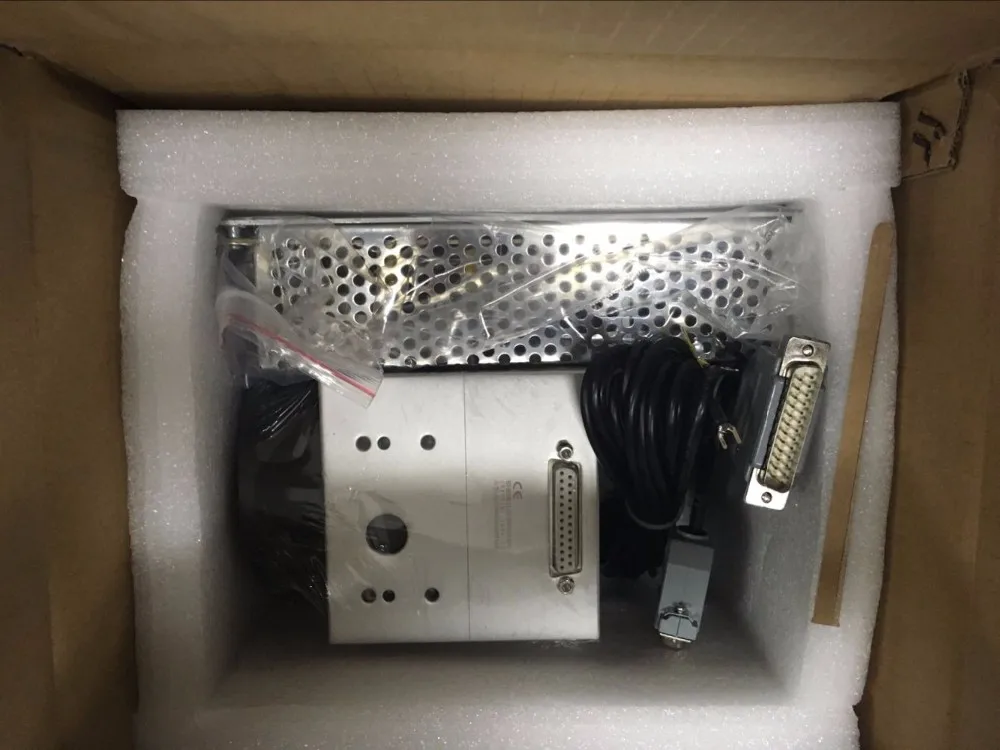

Product list



1. X Y motor with driver

2. 10mm aperture mirror

3. Power supply

4. Connection cable

5. Housing mounted



Application



The BCX-D10 galvo head / scan head can be widely used in different industrial applications including precision laser marking,

laser cutting,laser welding,laser drilling,rapid photographing and science researches,etc.

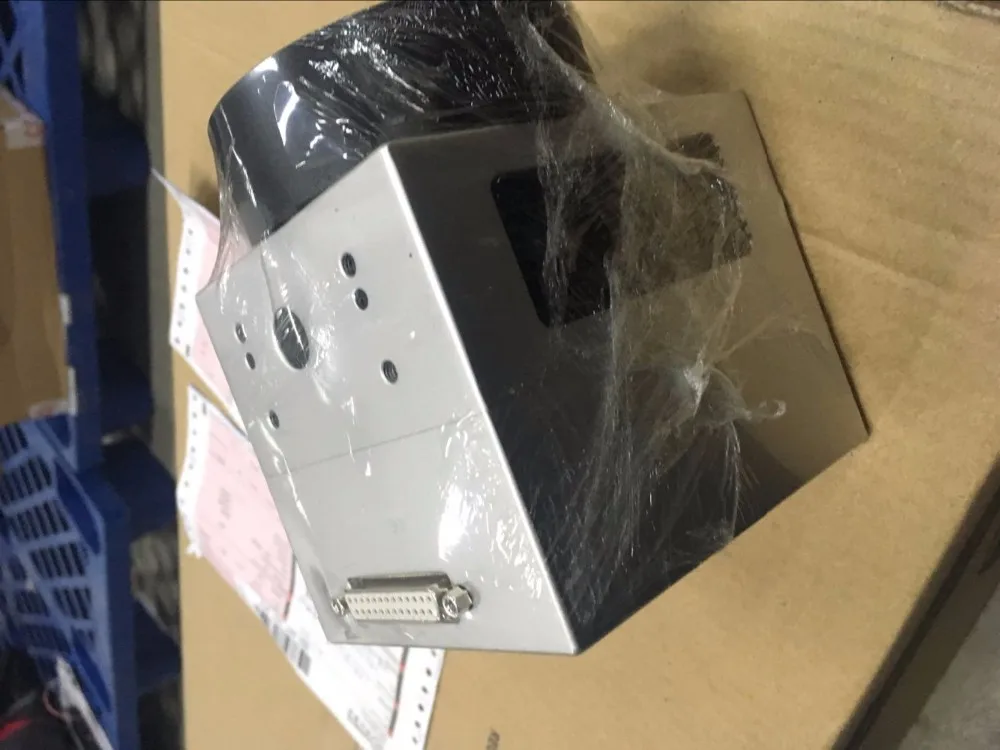

Packaging & Shipping


Packing:



The BCX- D10 galvo head/ scan head is packed in the standard export carton case



Shipping:



Door to door, by the DHL,EMS, UPS,FedEx etc.
